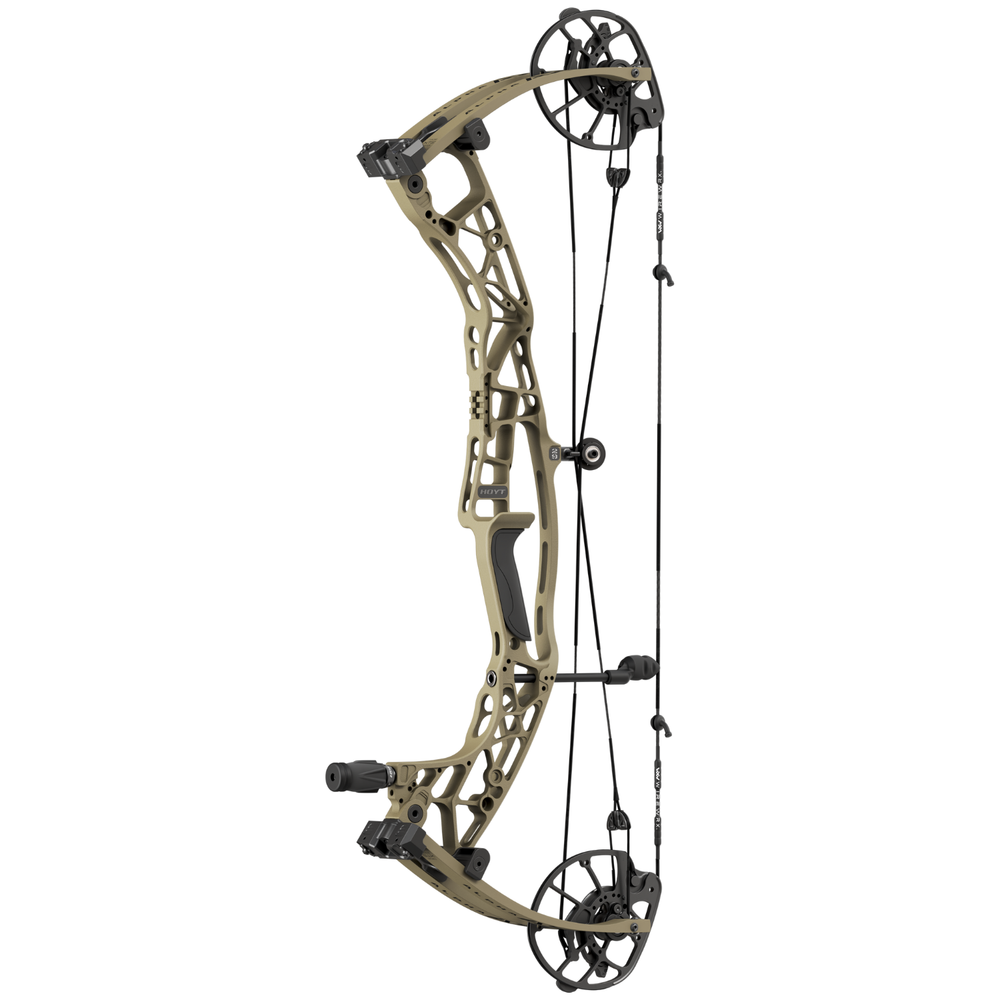

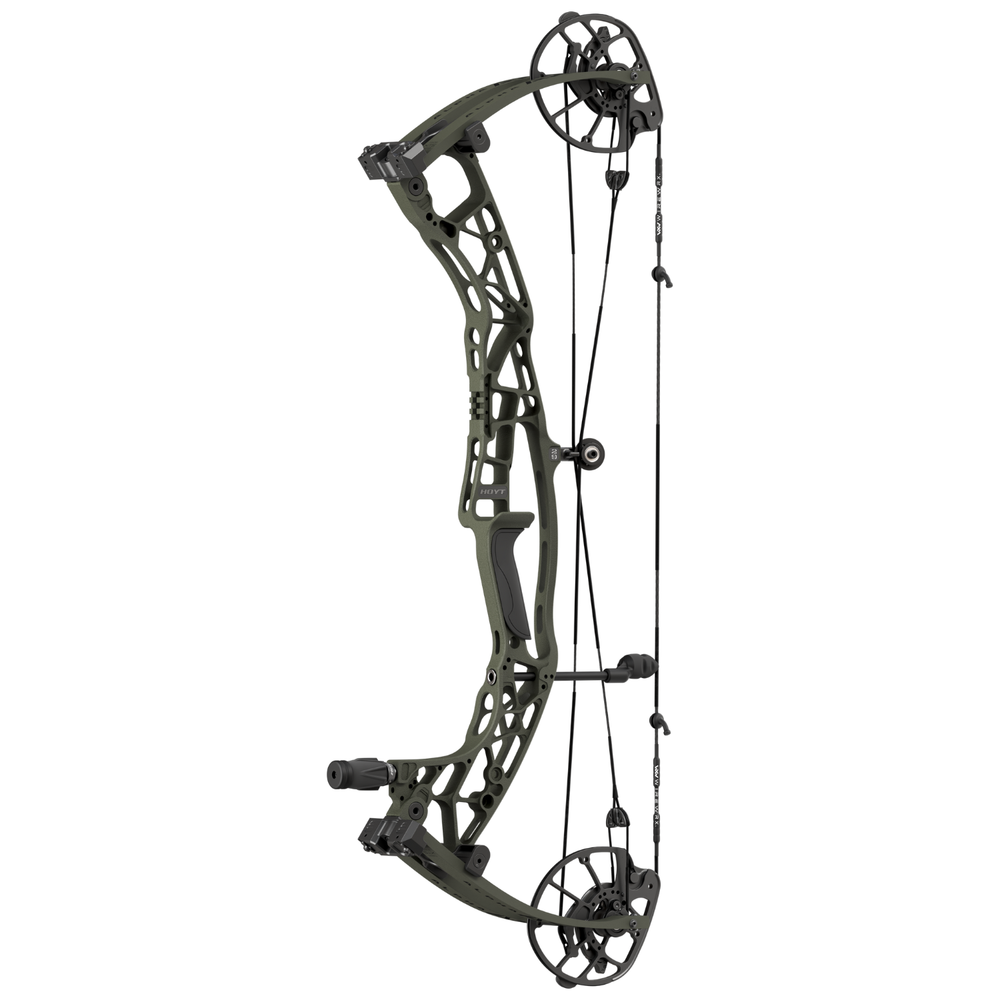

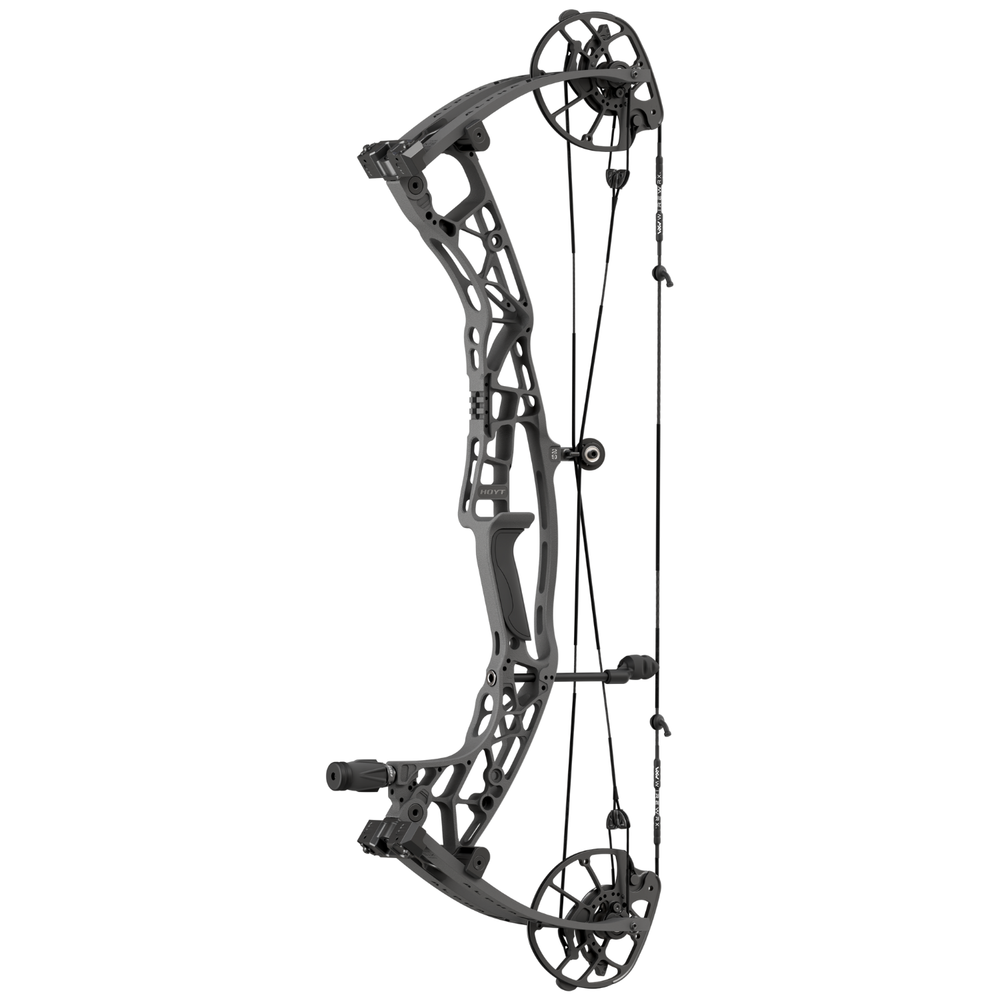

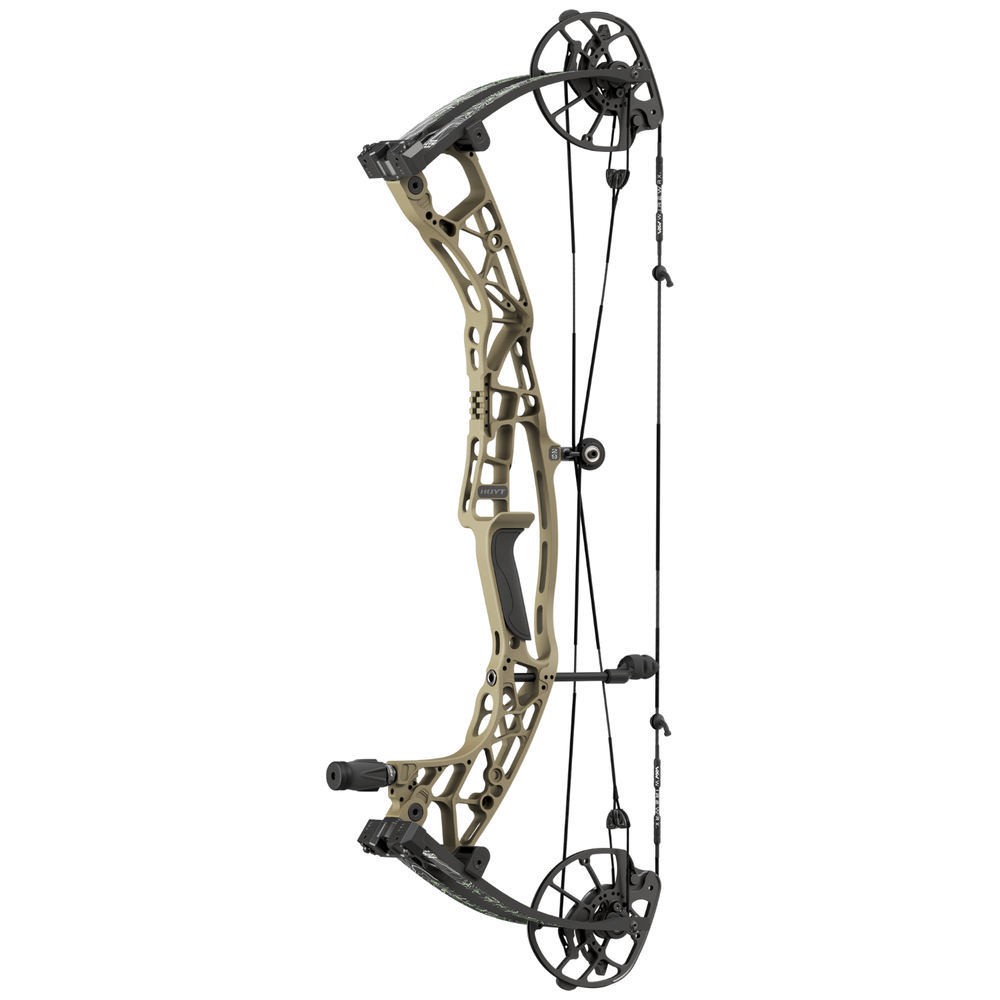

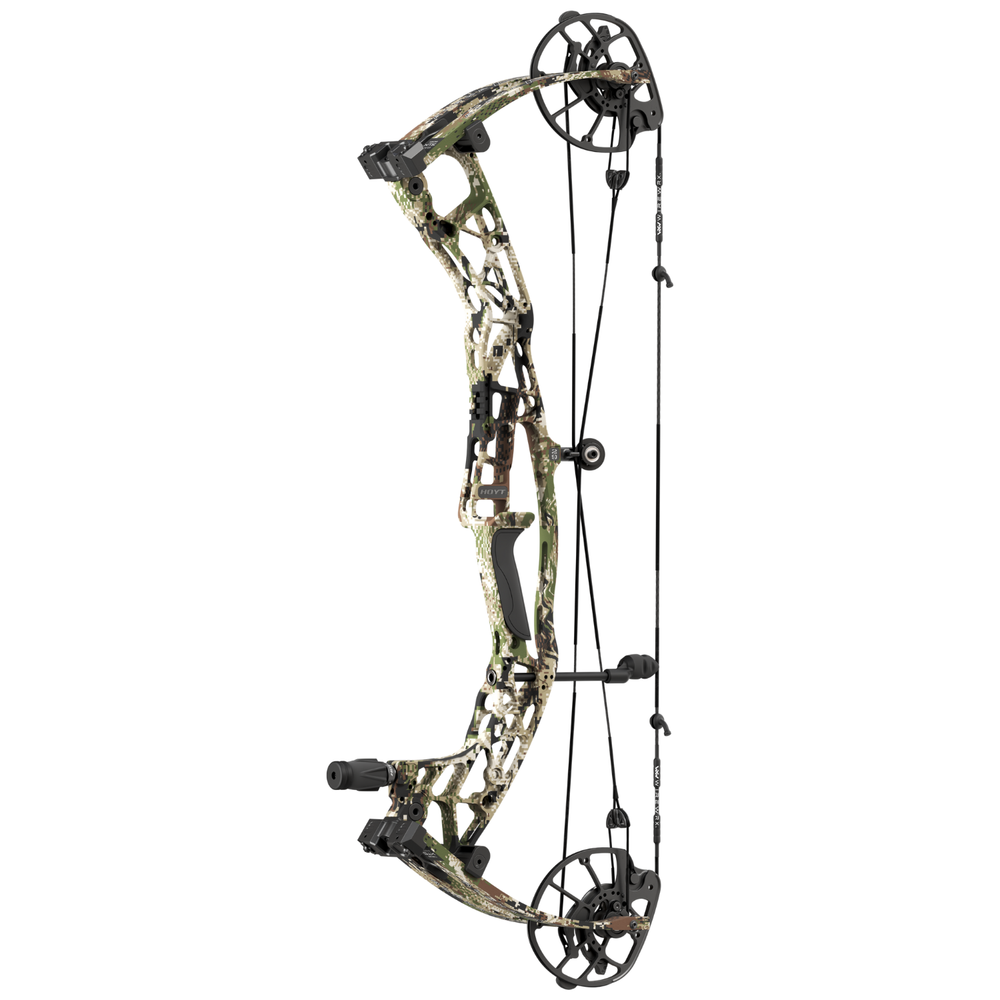

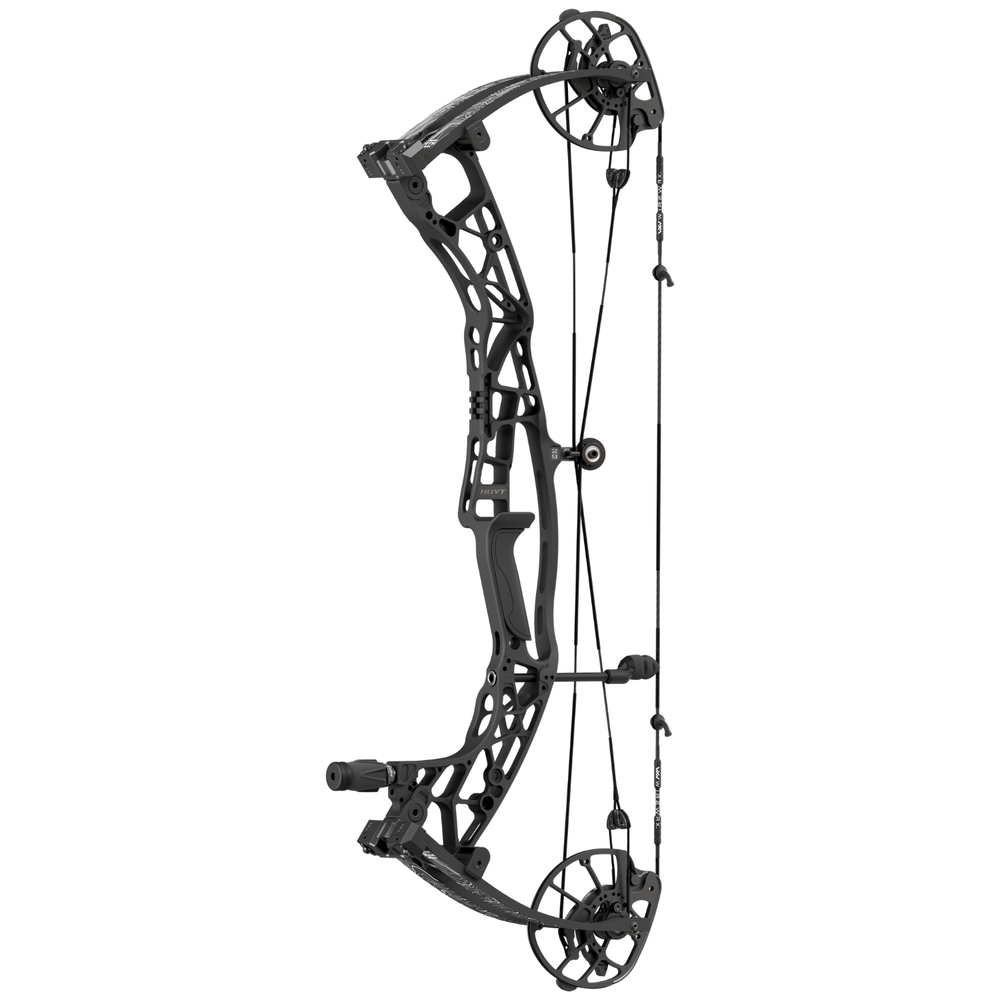

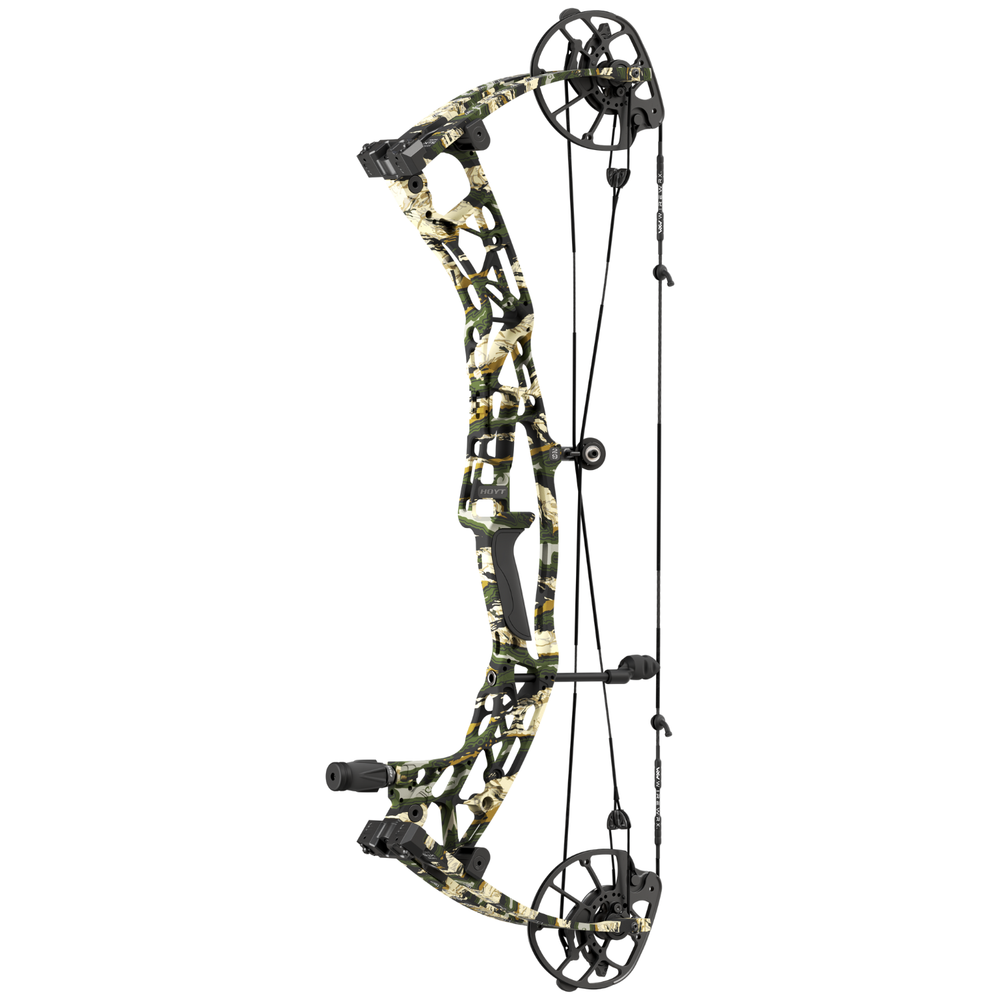

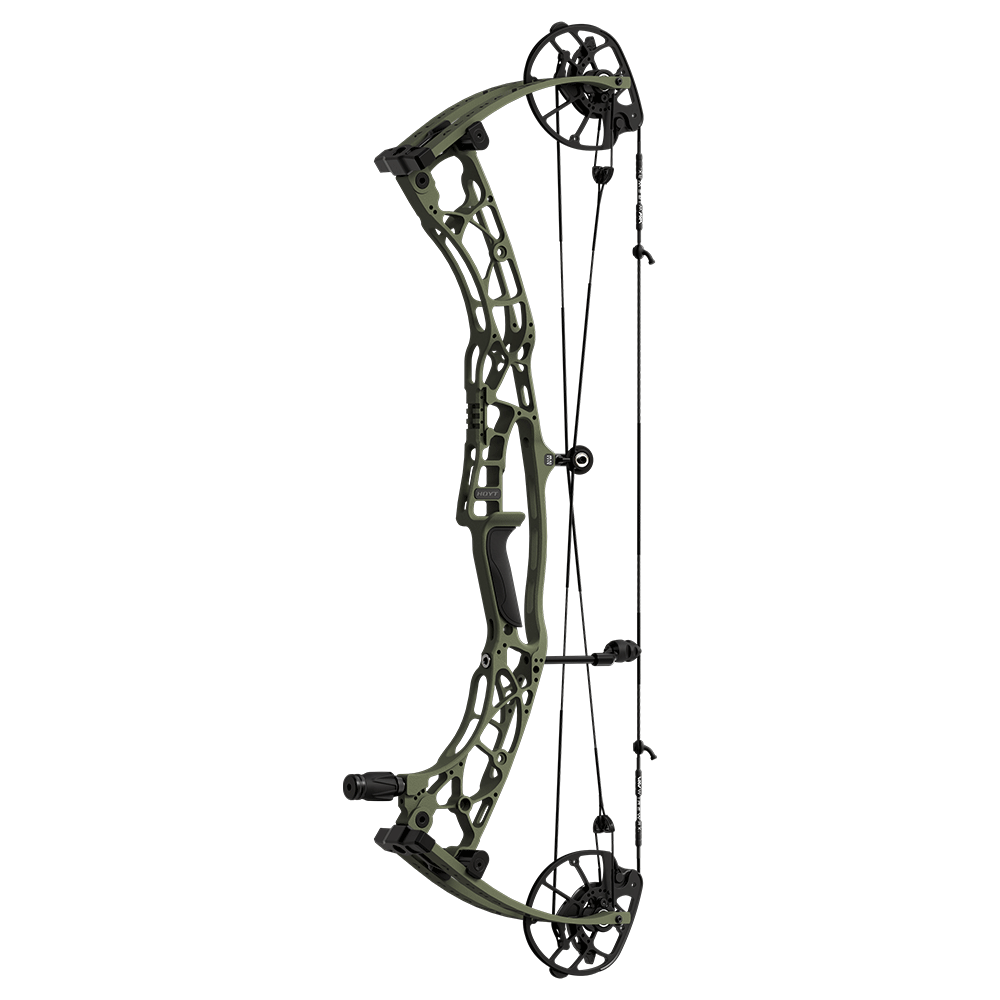

Hoyt Alpha AX-3 29

Description

The Ultimate Bowhunting Experience.

The smooth speed of the HBX Gen 4 cam system, the stiffest riser design on the market, limbs and cams that make 70lbs feel like 60lbs, balance optimization that makes the bow practically aim itself, a shot that epitomizes stealth, and now with the addition of Hoyt’s industry leading XTS Tuning system: Hoyt’s 2026 lineup is the best there is.

Hoyt saw a significant speed increase when going from the Alpha X lineup to the Alpha AX-2 series of bows and keeping that speed increase was an important factor when designing their new bows for 2026 – and they succeeded. The RX-10 and AX-3 variants all maintained that speed while the new XTS tuning system was implemented into the limb pockets.

Hoyt’s Optimized Geometry allows the effective string angle to maximize forgiveness and stability, even in the shorter axle-to-axle bows suck as the RX-10 and AX-3 29. This means treestand and mobile hunters don’t have to sacrifice any performance or precision when choosing the shorter bows in Hoyt’s lineup.

XTS Tuning System:

Tuning your bow has never been this easy – or this precise.

The 2026 Hoyt RX-10 and AX-3 Series feature the patent-pending XTS Tuning System, delivering quick, simple, and precise tuning—no press required. Unlike most systems that only fix left & right tears, XTS also corrects high & low tears, making it a complete solution, and XTS won’t change your point of impact after tuning adjustments are made. Just a simple turn of an Allen key and you’ll be shooting bullet holes in no time.



Features:

HBX Generation 4 improved module system – optimized #1 through #5 mods to ensure no performance is sacrificed at your weight/draw length.

Complete synergy with Hoyt accessories to make sure your system is as solid, reliable, and form-fitting as possible.

Natural point of aim design makes precision and ease of use easy to experience.

Hard wall and X Hard wall features for your perfect pre-shot feel.



Specifications:

Axle-to-Axle: 29-1/2”

Brace Height: 6-3/8”

Let-Off: 75%, 80%, 85%

IBO Speed: 340FPS

Mass Weight: 4.4lbs

Draw Length: 25” – 30”

Max Draw Weight: 50, 60, 65, 70, 75, 80lbs

Cam/Mod: HBX Gen 4

Dexterity: RH and LH

Standard Riser and Limb Colors: Wilderness, Tombstone, Blackout, Sandstorm, Georgia Clay

Camo Riser Colors: Realtree APX, Mossy Oak Bottomland, Kuiu Verde, Optifade Subalpine, (Camo finishes are $100 extra)



Why Archery Galore Likes the Hoyt AX-3:



Much like their carbon counterpart, Hoyt took their best-ever aluminum bow in the AX-2 and added an easy-to-use and incredibly efficient tuning system to the limbs that allows for horizontal and vertical tuning. Their best has only gotten better.
